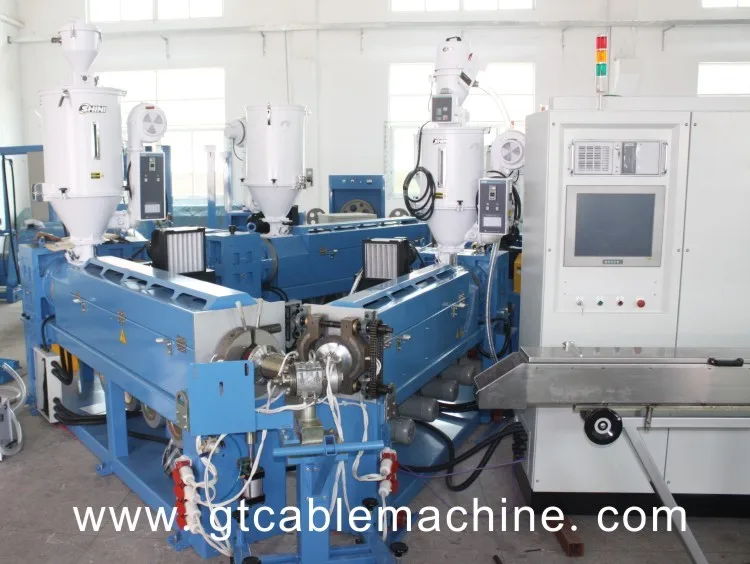

High Pressure Sheath Cable Extrusion Line

FOB Reference Price:Get Latest Price
US $65,000-99,000 / Sets | 1 Set/Sets (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Condition:
New
Application:
extruder
Plastic Processed:
PVC
Screw Design:
Double-screw
Automatic Grade:
atomated
Place of Origin:
Guangdong, China (Mainland)
Brand Name:
GOLDEN TECHNOLOGIES
Model Number:
GT-80+60MM
Voltage:
380V.50HZ
Power(W):
30KW
Dimension(L*W*H):
TBA
Weight:
7000KG
Certification:
ISO
After-sales Service Provided:
Engineers available to service machinery overseas
Name:
High Pressure Sheath Cable Extrusion Line
Motor:
Germany-Siemens
Inverter:
Germany-Siemens
Bearing:
Japan-NSK
Electric Element:
Siemens and Omron
Linear speed:
500m/ min
Process solution:
Double layer
Available Material:
PVC, PE, XLPE, LSHF, TPE
Control Box:
International Standard
Maintanance:
1year
Supply Ability
Supply Ability:
4 Set/Sets per Quarter
Packaging & Delivery
Packaging Details
1. Wooding Packing with electronic equipment
2. PE Film Packing
3. Shipment: 1*40'GP and 1*20'GP
4. According to Customers's Requirement
Port
shenzhen
Lead Time :
Shipped in 60 days after payment

Application

Suitable for the extrusion of PVC,PE and other plastic material, mainly applied in the insulation or sheath extrusion of auto cable, cat 5,6,7,power cable, data cable, building wire, electric wire. etc. The changed screw is suitable for extrusion of low smoke halogen free, nylon and other plastic material.High Pressure Co-Extrusion Sheath Cable Extrusion Line



 Salient features

High linear outputs throughout a broad range of speeds and pressure

Accurate functioning

Robust design with unique safety features for the user

Heavy duty bearing housing for trouble free working

Ease in operation and maintenance

Compact and robust construction

Low power consumption

Longer durability and serviceability

Efficient performance

Ability to work in any condition

High Pressure Co-Extrusion Sheath Cable Extrusion Line

Technique Specifications:

Line data:

- Process material: PVC/XLPE, LSHF

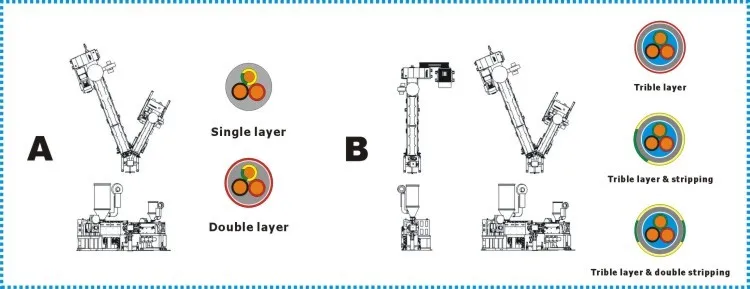

- Process solution: double layer

- Conductor size: 1.0mm2 to 150mm2

- Insulation thickness: 0.7mm---2.0mm

- Diameter after insulation: 2.5mm---30 mm

- Linear speed: Max. 500m/min (based on the cable diameter)

- Height of cable passing over floor: 1000mm

- Machine color: Based on customer’s requirement

- Machine direction: Based on customer’s requirement

- Power: 3P/ 380V / 50Hz

- Total line length: about 35 m



CABLE SIZE

(Double layer co-extruder crosshead)

Minimum Conductor Size 1.0 sq. mm

Maximum Conductor Size 150 sq. mm

Minimum Insulator Size 2.50 mm

Maximum Insulator Size 30 mm



OUTPUT :

Extruder 80mm - 280 Kg/Hr. (wall thickness 0.5 to 2.0 mm)

Extruder 60mm - 120 Kg/Hr. (wall thickness 0.5 to 2.0 mm)



Double round Capstan 600 mm

Pulling Caterpillar.



PAY OFF & TAKE UP BOBBIN/DRUM SIZE

Minimum 630--1600mm

90+80mm extrusion line-2detail



Our Services



Services

A dedicated team of field engineers are always ready for any customer‘s requirement and troubleshooting. These engineers have been specially trained for Problem Solving and Maintenance issues and have rich experience in the Wire and Cable Manufacturing.

alibaba showroom

1)Pre-sale services

  • model reference and equipment technical advice
  • Spot examination and commission
  • training, including correcting mode, correcting maintenance way.

2)After-sales service

  • One year’s warranty period
  • Regular maintenance and product tracking service
  • Lifelong cost of the required parts supply
  • instantly after-sales service

Safety

 Switch-off at overpressure

• Disabling signal at under temperatures

• Stop at over temperature

• Motor power limit

• Emergency stop

• Monitoring of tolerances and alarms

• Monitoring of sensors

High Pressure Co-Extrusion Sheath Cable Extrusion Line
