Low Voltage Wire Cable Production Line

FOB Reference Price:Get Latest Price
US $50,000-99,000 / Sets | 1 Set/Sets Customer Requirement (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Condition:
New
Application:
Wire
Plastic Processed:
PE
Screw Design:
Single-screw
Automatic Grade:
High Automatic
Place of Origin:
Guangdong, China (Mainland)
Brand Name:
GOLDEN TECHNOLOGIES
Model Number:
GT-90+60MM
Voltage:
380V .50/60HZ
Power(W):
50KW
Dimension(L*W*H):
TBA
Weight:
About 7000KGS
Certification:
ISO/CE
After-sales Service Provided:
Engineers available to service machinery overseas
Extrusion capacity:
390KG / Hour
Screw speed:
120 RPM
Motor:
Germany-Siemens
Bearing:
Japan-NSK
Inverter:
Germany-Siemens
Electric Element:
Siemens and Omron
Control Box:
International Standard
Available Material:
Pvc,Pe,Xlpe,Lshz,tpe
Factory Location:
0.8 hours drive from Shenzhen
Price:
Competitive Price
Supply Ability
Supply Ability:
4 Set/Sets per Quarter Cable extruder
Packaging & Delivery
Packaging Details
1wooden packing or PE film sample packing
2by requirements
Port
Shenzhen
Lead Time :
Shipped in 60 days after payment

APPLICATION:

GOLDEN TECHNOLOGIES® Optimum design of machine each part for extruding PVC, XLPE and LSHF materials still under further innovation. Excellent quality product has been obtained consistently as well. The high standard to the raw material, the carefulness for the workmanship of each part details, the vigorous quality control to the assembly parts and the professional testing and inspecting system to the finished machine. So that the superior and optimal wire and cable machine and production line can be offered for making house wire, building wire, power cable, LAN cable, coaxial cable, and even the special cable.



PROGRESS:

1. 1000mm single twist machine for twisting cabling core wires
2. 70mm extrusion line for insulation house wire with extruding PVC,XLPE,and LSHF plastic compound material.
3. 630mm double twisting bunching machine for twisting bunching copper wires.
4. 90+50mm extrusion line for sheathing and coating twisted core wire with extruding PVC,XLPE,and LSHF plastic compound material.
5. 1246 auto coiling machine for coiling the house wire as 100 meters,200 meters per coil.





 90+60mm

Processing Specifications:

Model:

GT-90+60MM

Processing Material:

PVC, XLPE

Output capacity:

390kg/hr

Finished cable diameter:

4.0---45.0 mm

Max. line speed:

450 m/min

Bobbin size:

630 / 800 mm

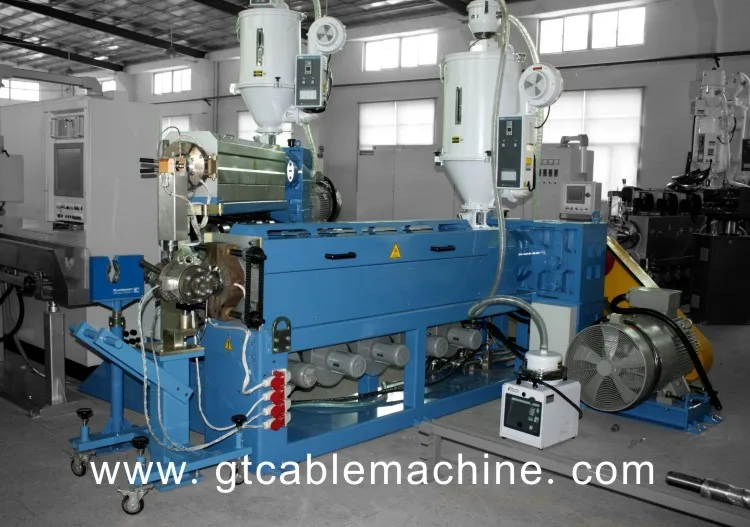

90+60mm extrusion linedetail



GT-1000MM High speed cantilever single twisting machine

Configuration:

Pay-off, stranding machine, center tapping machine, length counter, electric control system, and so on.





Coiling machine

                        model

spec

GT-C1246

Height mm

40-120

O.D mm

φ200-φ500

I.D mm

φ135-φ220

Wire diameter mm

φ0.8-φ12

Speed (Max)

500M/min

Time

5-6 S

Average output(for a 100M’s coil)

25 S/coil













(1). WHAT'S YOUR COMPANY'S ADVANTAGES THAN OTHER MANUFACTURERS?
1. High output capacity will guarantee your high frequency production.
2. We are very good at engineering. For the machine working well, we are rigorous to every detail of manufacturing.
3. The extruder screw is designed by us, but made the specialized screw maker in Taiwan, and the raw material is SACM-645 steel from USA.
4. All of our electrical parts are used the international qualified brand, like Siemens, ABB, etc.
5. High end quality machine from us is to keep you have a good experience to your wire and cable making.
6. We guarantee all our electrical and mechanical parts for one year from the delivery date the machine running smooth in customer's place.




WHY DO WE TRUST YOUR COMPANY?
We are the leading manufacturer of any kinds of complete wire and cable extrusion line in China since 1999,Our machine has exported to over 53 different countries,like Germany,Poland,Italy,Russia,etc...

low voltage wire cable insulation production line
