Wire Cable jacketing extrusion Line

FOB Reference Price:Get Latest Price
US $60,000-99,000 / Sets | 1 Set/Sets (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Condition:
New
Application:
Wire
Plastic Processed:
FEP
Screw Design:
Single-screw
Automatic Grade:
High Automatic
Place of Origin:
Guangdong, China (Mainland)
Brand Name:
GOLDEN TECHNOLOGIES
Model Number:
GT-30MM
Voltage:
380V .50/60HZ
Power(W):
11KW
Dimension(L*W*H):
TBA
Weight:
About 5000KGS
Certification:
ISO
After-sales Service Provided:
Engineers available to service machinery overseas
Finished wire diameter:
0.18--1mm
Extruding speed:
100M/min
Motor:
Germany-Siemens
Bearing:
Japan-NSK
Inverter:
Germany-Siemens
Electric Element:
Siemens and Omron
Control Box:
International Standard
Available Material:
FEP/PFA/ETFE
capacity:
8KG/H
Screw speed:
35RPM
Supply Ability
Supply Ability:
3 Set/Sets per Quarter
Packaging & Delivery
Packaging Details
1. Wooding Packing with electronic equipment
2. PE Film Packing
3. Shipment: 1*40'GP and 1*20'GP
4. According to Customers's Requirement
Port
ShenZhen
Lead Time :
Shipped in 60 days after payment

(1)APPLICATION:

Extrusion production line is designed with advanced configuration to meet special requirement of mini cable producing.

This extruder is improved for solid and high foamed mini coaxial cable insulation with processing plastic compound material of FEP/PFA/ETFE.extrusion line is produce (fluoride plastic) high temperature ,wire, all kinds of thin multilayer insulation and extrusion;



Model

GT-TF25

GT-TF 30

GT-TF 45

original wire diameter(mm)

0.05-0.50

0.08-0.8

0.50-1.5

Finished wire diameter(mm)

0.15-0.80

0.18-1.00

0.8-2.00

Extruding speed(m/min)

80

100

120

Screw diameter(mm)

25

30

45

Screw L:D(L/D)

25:1

25 :1

25 :1

Screw speed rotation(rpm)

30

35

40

capacity(kg/h)

3

8

15

Main motor(kw)

5.5

11

30

Hauling motor(kw)

3

4

5.5

Taking up motor (kw)

2.2

2.2-3.7

3.7-5.5

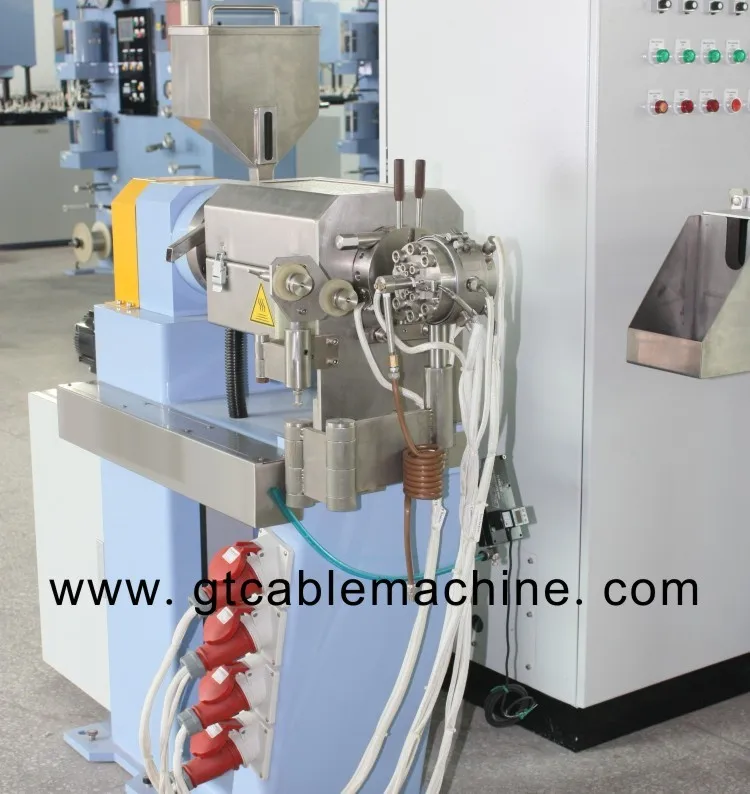

Wire jacketing extrusion machineWire jacketing extrusion machine

2).SALIENT FEATURES

1. We manufacture the each parts of machine with precision machining treatment
2. Electric appliances all imported, ensure high running stability and long life
3. Famous brand temperature control, improve  high precision and high quality .

4.  more over each part got to be tired of rigorous examining and testing to guarantee high quality.


SAFETY

Switch-off at overpressure
Disabling signal at under temperatures
Stop at over temperature
Motor power limit
Emergency stop
Monitoring of tolerances and alarms
Monitoring of sensors
