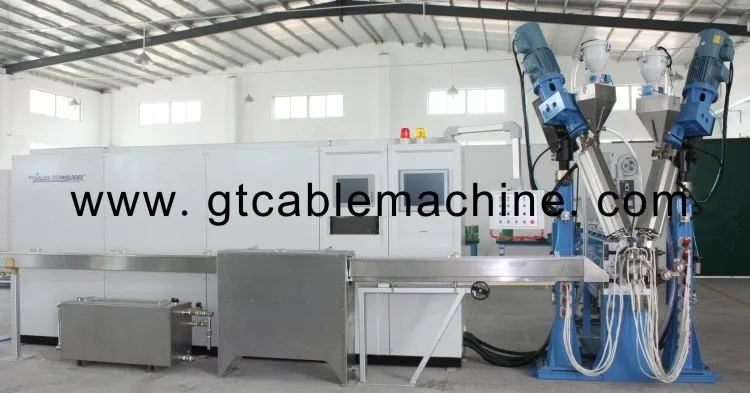

HDMI Coaxial cable production line

FOB Reference Price:Get Latest Price
US $155,000-226,000 / Set | 1 Set/Sets (Min. Order)
Supply Ability:
4 Set/Sets per Quarter
Port:
shenzhen
Report Suspicious Activity
Overview
Quick Details
Condition:
New
Application:
Extruder
Plastic Processed:
PE
Screw Design:
Single-screw
Automatic Grade:
automated
Place of Origin:
Guangdong, China (Mainland)
Brand Name:
GOLDEN TECHNOLOGIES
Model Number:
GT-25+60+35MM
Voltage:
380v
Power(W):
30KW
Dimension(L*W*H):
TBA
Weight:
ABOUT 7000KG
Certification:
ISO
After-sales Service Provided:
Engineers available to service machinery overseas
Capacity:
170 KG/H
Motor:
Siemens-Germany
Inverter:
Siemens-Germany
Bearing:
NSk-Japan
Electric element:
Siemens and Omoron
Control box:
International standard
Available material:
PVC, XLPE
Machine direction:
based on customer's requirement
Color:
blue,red,green or as customer's requirement
Insulated cable size:
8.0mm
Packaging & Delivery
Packaging Details
1PE film sample packing
2wooden packing
Delivery Time
Shipped in 60 days after payment

APPLICATION:

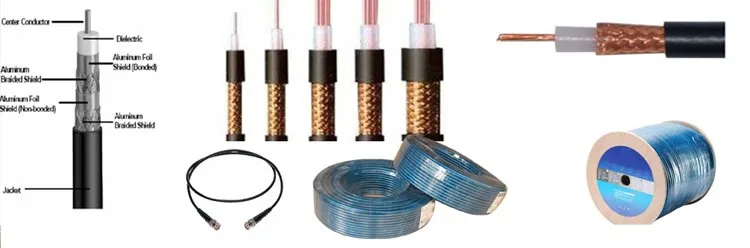

     It is Apply for extruding single layer , dual layer , triple layer insulating core-wire (S/F/S) for communication cables, such as HDMI, Display Port IEEE1394, DVI,VGA, ATA etc.



      1.  Inner skin extruder 30mm/26D  .  rotation speed 20-120RPM

      2.  Foam extruder65/26D               .  rotation speed: 20---120RPM

      3.  Outer skin extruder 35/26D       .  rotation speed: 15---120RPM







(2).SALIENT FEATURES

High linear outputs throughout a broad range of speeds and pressure

Accurate functioning
Robust design with unique safety features for the user
Heavy duty bearing housing for trouble free working
Ease in operation and maintenance
Compact and robust construction
Low power consumption
Longer durability and serviceability
Efficient performance
Ability to work in any condition

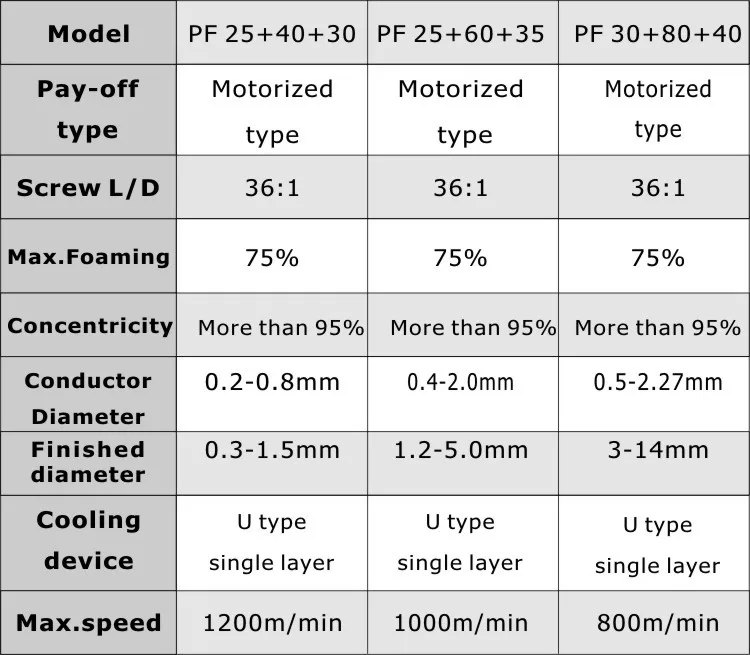

(3) Technical Parameters

1. Process material: PE/foaming PE

2. Max. Foaming degree: 70 %

3. Insulated cable size: 8.0mm

4. Line speed: SFS physical foam insulated wire should be 50---250m/min (based on exact cable size)

5. Power: 3P/ 380V / 50Hz

6. Height of cable passage over floor: 1000mm

7. Machine color: Blue

8. Machine direction: from right to left

9. Total length: about 40m


Company Information

ARE YOU THE MANUFACTURER OR TRADING COMPANY?
We are the manufacturer.



WHY DO WE TRUST YOUR COMPANY?

We are the leading manufacturer of any kinds of complete wire and cable extrusion line in China since 1999,Our machine has exported to over 53 different countries,like Germany,Poland,Italy,Russia,etc...

HOW TO REACH OUR FACTORY:
1.Only 35 minutes from Guangzhou city to Dongguan city by high speed train.
2.Just 40 minutes from Shenzhen city to Dongguan city by high speed train.
3.Total 1.5 hours by car from Guangzhou airport to our factory .
4.Only 1 hour by car from Shenzhen airport to our factory.



Our Services

Our Guarantee:

(1) 1 year for machinery parts, and 6 months for electrical parts

(2) Engineers available to service machinery overseas

(3) 45--60 days after ordered ( special will notice)
