Wire Cable Plastic Machine Extruder

FOB Reference Price:Get Latest Price
US $71,000-118,000 / Set | 1 Set/Sets (Min. Order)
Supply Ability:
4 Set/Sets per Quarter
Port:
shenzhen
Report Suspicious Activity
Overview
Quick Details
Condition:
New
Application:
Extruder
Plastic Processed:
PVC
Screw Design:
Double-screw
Automatic Grade:
automated
Place of Origin:
Guangdong, China (Mainland)
Brand Name:
GOLDEN TECHNOLOGIES
Model Number:
GT-90MM
Voltage:
380v
Power(W):
50KW
Dimension(L*W*H):
TBA
Weight:
ABOUT 7000KG
Certification:
ISO
After-sales Service Provided:
Engineers available to service machinery overseas
Speciality:
high speed
Motor:
Siemens-Germany
Inverter:
Siemens-Germany
Bearing:
NSk-Japan
Electric element:
Siemens and Omoron
Control box:
International standard
Available material:
PVC/PE/PP/LSHF
Extrusion capacity:
390 kg/h
Color:
blue,red,green or as customer's requirement
Price:
high quality
Packaging & Delivery
Packaging Details
1PE film sample packing
2wooden packing
3by requirement
Delivery Time
Shipped in 60 days after payment

1. Application:

GOLDEN TECHNOLOGIES Optimum design of machine each part for extruding PVC, XLPE and LSHF materials still under further innovation. Excellent quality product has been obtained consistently as well. The high standard to the raw material, the carefulness for the workmanship of each part details, the vigorous quality control to the assembly parts and the professional testing and inspecting system to the finished machine.

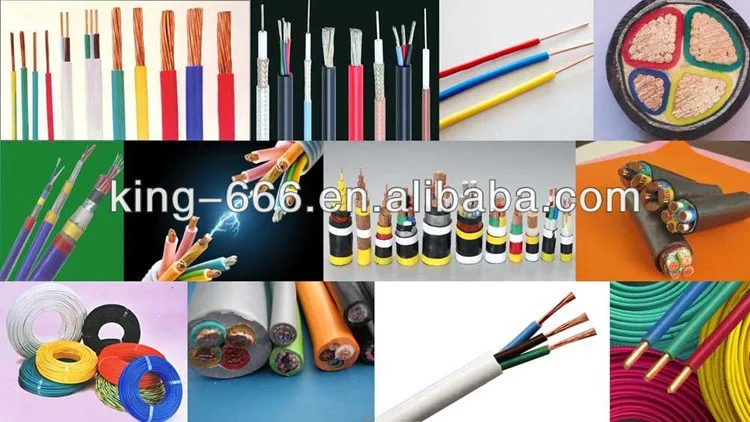

Mainly Designed for insulation and sheathing or stripping power cable of single layer, double layer and triple layer. It is possible for extrusion to recombine the line composition according to customers' specific demand to be tandem extrusion, and to make using PVC and the cross linked flame retardant polyethylene (XLPE and HFFR).


FEATURE:
-High configuration,main electric parts are importing,
-Temperature Controlled stably at any time for plastic melt
-Simultaneous insulation of different color materials
-Components equipped with maximum flexibility
-High Flexibility for different Types of Cables
-Different Pay-off and Take-up Sizes are available
-The screw surface is carbonized and quenched, electroplated with hard cr. ,Gear tooth surface abrasion resistance.

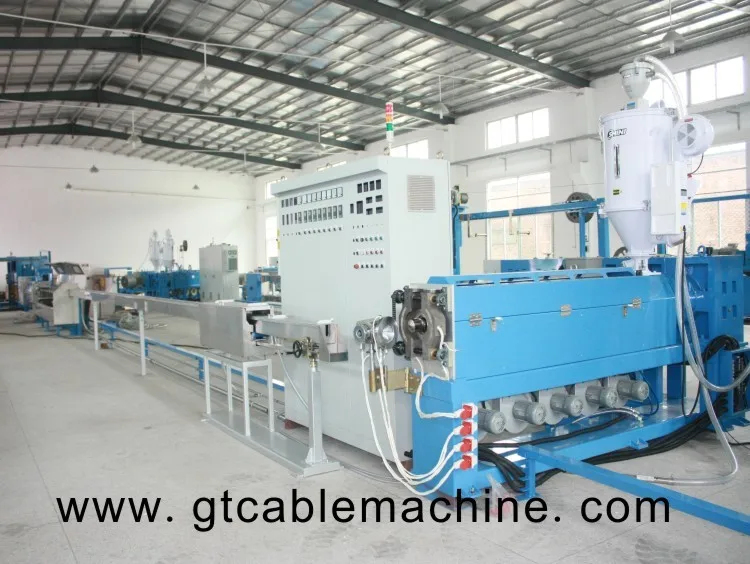

2. Components:

Line components:

Description

Quantity

Note

Pay off

1

                               630-1250MM

Main extruder

1

90mm/26D

Plastic feeding unit

1



Crosshead

2



Cooling trough

1

Moveable +single layer

Water wiper

1



Diameter controller

1



Mark printer

1



Caterpillar

1



Spark tester

1



Meter counter

1



traverse

1



Take up

1

1250MM

Control box

PLC + touch screen; Master control possible; equip with industry air conditioner; all motor drivers are Siemens; switch and contactors are Siemens; relays are Omron

Water pipe and power supplier

Chiller+ pump+ water tank



Optional:
1.Different take-up machine etc.
2.Flyer pay-off or other pay off machine.
3.Taiwan or Swiss brand crosshead.
4.Copper pre-heater.
5.Talc applicator.
6.Different brand Laser diameter gauge.
7.Coiler on line

3. Main parts brand
A. Motor: Germany-SIEMENS
B. Inverter: Germany-SIEMENS or YASKAWA Japan
C. Electric equipment: SIEMENS and OMRON
D. Bearing: NSK from Japan
E. Belt: MITSUBISHI

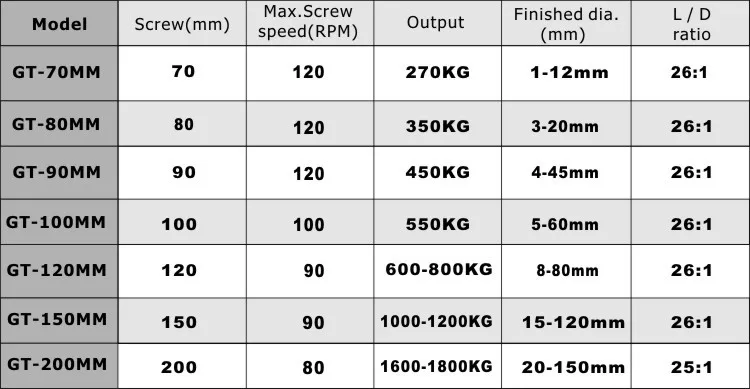

4, Technical parameter:
