Dongguan Cable wire Manufacturing machine

FOB Reference Price:Get Latest Price
US $65,000-99,000 / Set | 1 Set/Sets (Min. Order)
Supply Ability:
5 Set/Sets per Quarter
Port:
any port of China
Report Suspicious Activity
Overview
Quick Details
Condition:
New
Application:
Wire
Plastic Processed:
PVC
Screw Design:
Double-screw
Automatic Grade:
High Automatic
Place of Origin:
Guangdong, China (Mainland)
Brand Name:
GOLDEN TECHNOLOGIES
Model Number:
GT-80+60MM
Voltage:
380V .50/60HZ
Power(W):
30kw
Dimension(L*W*H):
TBA
Weight:
About 7000KGS
Certification:
ISO
After-sales Service Provided:
Engineers available to service machinery overseas
Finish wire diameter:
3mm-20mm
Specialty:
High Speed
Motor:
Germany-Siemens
Bearing:
Japan-NSK
Inverter:
Germany-Siemens
Electric Element:
Siemens and Omron
Control Box:
International Standard
Available Material:
Pvc,Pe,Xlpe,Lshz,Tpe
Name:
Dongguan Cable wire Manufacturing machine
Price:
Competitive Price
Packaging & Delivery
Packaging Details
1wooden packing
2PE film sample packing
3by requirements
Delivery Time
Shipped in 60 days after payment

General Description

Extruders are mostly used for various wire & cable insulation sheathing stripping & skinning with single, double or triple extrusion layers available by using different cross heads. The changed screw is suitable for extrusion of low smoke halogen free, nylon ,PVC, PE and other plastic material. Based on the needs of our clients we have custom-made wire and cable extruders to meet their specific applications.



Feature:
1.High configuration,main electric parts are importing,
2.The screw surface is carbonized and quenched, electroplated with hard cr. ,Gear tooth surface abrasion resistance.
3.big quantity of extrusion,Low energy consumption of the equipment,
4.high production efficiency than other supplier, high gloss surface,
5.small temperature difference good stability,
6.strong continuity of working, convenient operation, long service life.

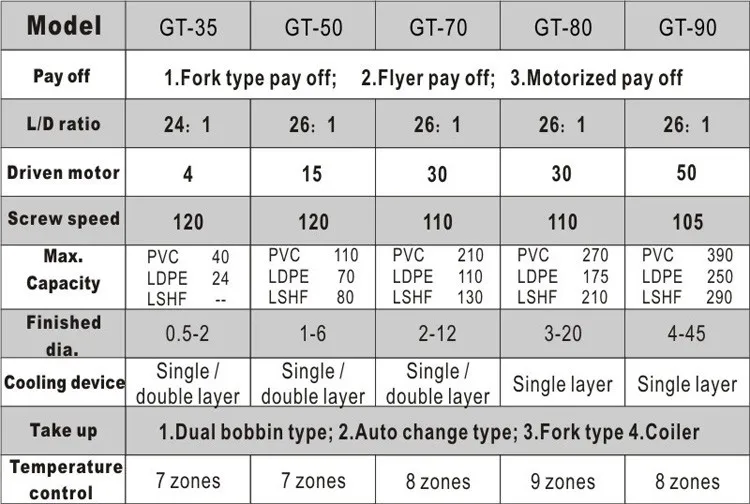

Technique Specifications:

Line data:

- Process material: PVC/XLPE

- Process solution: single layer/ color stripping

- Conductor section: 0.75mm2to 10mm2 (single core)

                   Or up to 4 X 6 mm2multi core cable

- Insulation thickness: 0.5mm---1.5mm

- Size after insulation: 1.5mm---15mm

- Linear speed: Max. 450m/min (based on the cable diameter)

- Line axis height: 1000mm

- Machine color: Based on customer’s requirement

- Machine direction: Based on customer’s requirement

- Power: 3P/ 380V / 50Hz

- Total line length: about 30 m

Consisting Components:

1,double-shaft pay-off rack
2,straightener platform
3,main extruder
4,automatic dryer and hopper
5,electric apparatus main control cabinet
6,Double layer movable trough
7,laser diameter gauge or Digital Diameter controller
8,high speed printing machine
9,double-wheels capstan
10,Meter counter
11,horizontal type wire-accumulator
12,power frequency sparker
13,double-shaft take-up machine

Optional:
1.Different take-up machine etc.
2.Flyer pay-off or other pay off machine.
3.Taiwan or Swiss brand crosshead.
4.Copper pre-heater.
5.Talc applicator.
6.Different brand Laser diameter gauge.
7.Coiler on line





Performance table(for reference)

conductor section

wall thickness

cable diameter

production speed

mm2

mm

mm

m/min

km/hr

0.75

0.6

2.3

450

27

1

0.6

2.5

450

27

1.5

0.6

2.8

450

27

2.5

0.7

3.2

450

27

4

0.8

3.9

370

22

6

0.8

4.4

320

19

10

1.0

5.7

250

15

2 X 1.5

1.2

7.6

130

7.8

3 X 2.5

1.2

9.2

110

6.6

4 X 4

1.2

11.5

90

5.4

4 X 6

1.2

12.5

80

4.8



Services

A dedicated team of field engineers are always ready for any customer‘s requirement and troubleshooting. These engineers have been specially trained for Problem Solving and Maintenance issues and have rich experience in the Wire and Cable Manufacturing.

1)Pre-sale services

  • model reference and equipment technical advice
  • Spot examination and commission
  • training, including correcting mode, correcting maintenance way.

2)After-sales service

  • One year’s warranty period
  • Regular maintenance and product tracking service
  • Lifelong cost of the required parts supply
  • instantly after-sales service

 Safety

 Switch-off at overpressure

• Disabling signal at under temperatures

• Stop at over temperature

• Motor power limit

• Emergency stop

• Monitoring of tolerances and alarms

• Monitoring of sensors
